高壓隔離低壓電源

高壓隔離低壓電源

Advanced Energy的浮動熱甲板低壓電源係列為需要低壓電源和高壓隔離控製的係統提供了集成解決方案。這些子係統將高度隔離的DC到DC多輸出低壓電源與先進的隔離數字和模擬I/O拓撲相結合,為浮動熱甲板電路提供電源和控製。

首頁 > 產品中心 > 高壓電源 > PCB安裝型高壓電源 > 高壓隔離低壓電源

高壓隔離低壓電源

返回
page1
page1
page1
page1

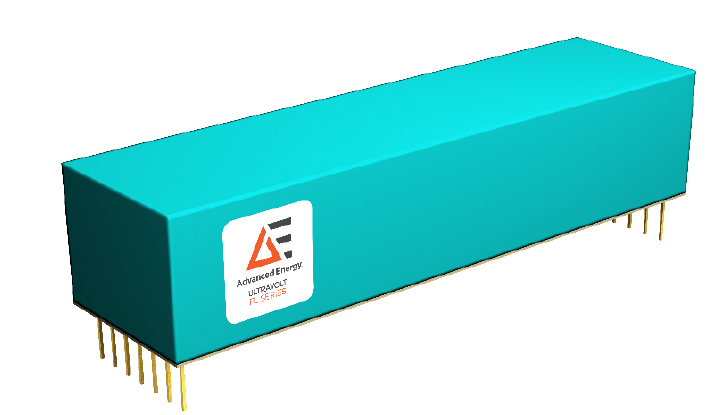

Floating Hot Deck LVPS With Isolated Digital And Analog I/O

FL 係列

The UltraVolt® FL series of floating-hot-deck, low-voltage power supplies offers an integrated solution for systems requiring LV power & controls with high-voltage isolation. Combining a highly isolated, DC-DC, multi-output low-voltage power supply (LVPS) with an advanced isolated digital & analog I/O topology, the FL sub-system provides both power and controls to floatinghot-deck circuitry. This solution, when combined with one or more UV HVPS or other circuitry, can provide high-performance solutions.

特點

  • Isolated up to 15 kV
  • DC leakage current of <10 nA
  • AC leakage capacitance of <40 pF
  • 3 regulated floating LV power outputs
  • Isolated digital and analog I/O to and from floating hot deck
  • UL/cUL Recognized Component; CE Mark (LVD & RoHS)

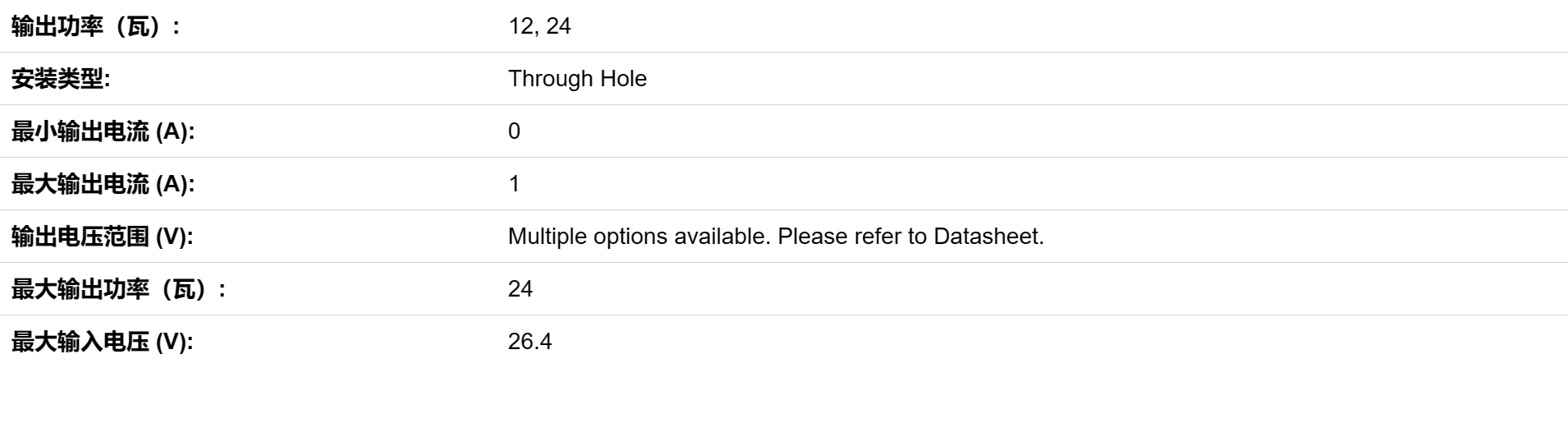

規格

技術文檔
